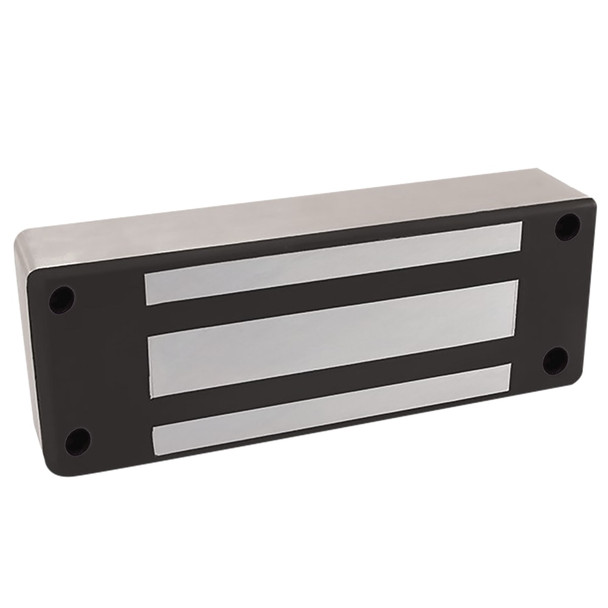

Securitron M62FB Series 1200 lbs Holding Force Magnalock
- M62 Series Magnalock, 1200lbs, 12/24vdc, Face Drilled, MBS.
- Magnalock, Bondstat, Face Mount.
1200 lbs. holding force Magnalock with automatic dual voltage. Recommended for exterior and perimeter doors through which criminals could gain entrance to cause substantial economic loss.
Product Features
- Patented instant release circuit - no residual magnetism
- Fully sealed electronics - tamper proof and weatherproof
- Surface mounts easily with minimal tools
- Mounted using steel machine screws into blind finishing nuts
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening
- Dress Covers available
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 1200 lbs. [544 kg]
- Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
M62 Architectural Specifications
