Description

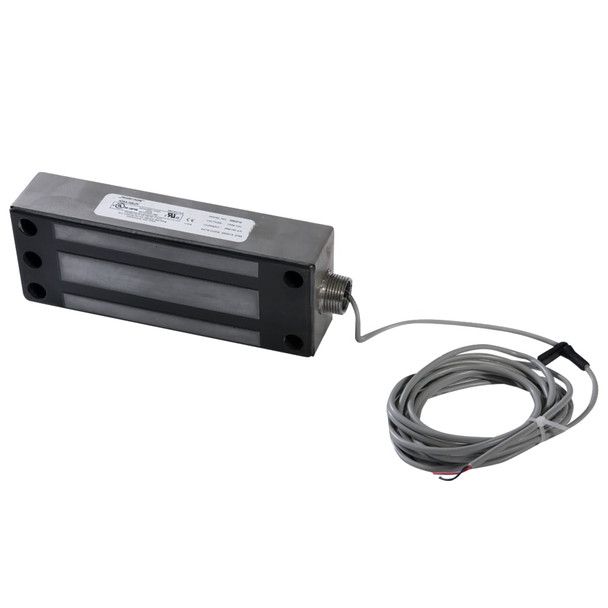

Securitron M62FGBD Series 1200 lbs Holding Force Magnalock
- M62 Series Magnalock, 1200lbs, 12/24vdc, Face Drilled, Gate Conduit, MBS, DPS.
- Magnalock, Face Mount, Conduit, Bondstat, Door position.
1200 lbs. holding force Magnalock with automatic dual voltage. Recommended for exterior and perimeter doors through which criminals could gain entrance to cause substantial economic loss.
Product Features
- Patented instant release circuit - no residual magnetism
- Fully sealed electronics - tamper proof and weatherproof
- Surface mounts easily with minimal tools
- Mounted using steel machine screws into blind finishing nuts
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening
- Dress Covers available
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 1200 lbs. [544 kg]
- Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
M62 Architectural Specifications
