Description

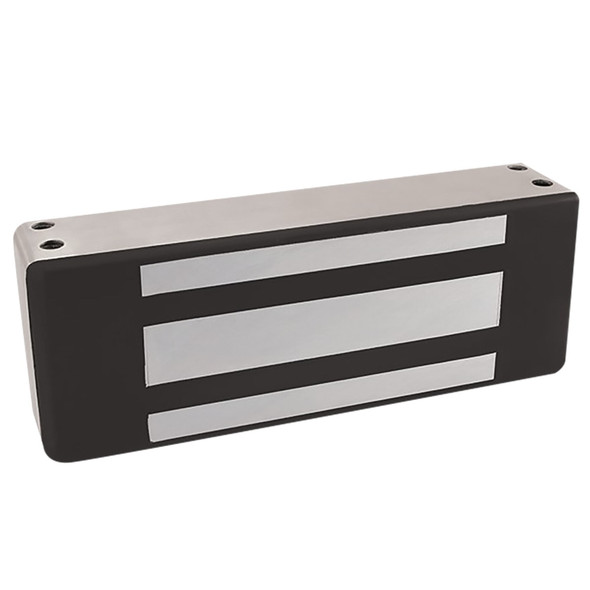

Securitron M68DS 1200 lbs Holding Force Magnalock
- Maglock M68 Series, 1200 Lbs, 12/24VDC, DPS, Sensat.
- Bracket Mount, Door Position Switch.
- Aluminum.
1200 lbs. holding force Magnalock with automatic dual voltage. This model offers a built-in wire access chamber and bracket mount design for a unique method of installation. Recommended for interior and perimeter doors through which criminals could gain entrance to cause substantial economic loss.
Product Features
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with mounting bracket using minimal tools
- Internal wire access chamber
- Mounted using steel machine screws into blind finishing nuts
- Brushed aluminum finish
- All ferrous metal surfaces plated to MIL specification
- Automatic dual voltage - no field adjustment required
- Dress Covers available
- Lock options include door position switch, LED indicator and anti-tamper switch
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 1200 lbs. [544 kg]
- Current Draw and Voltage: 250mA at 12VDC; 125mA at 24VDC
- Operating Temperature: +32 to +110F [0 to +43C]
M68 Architectural Specifications
