Description

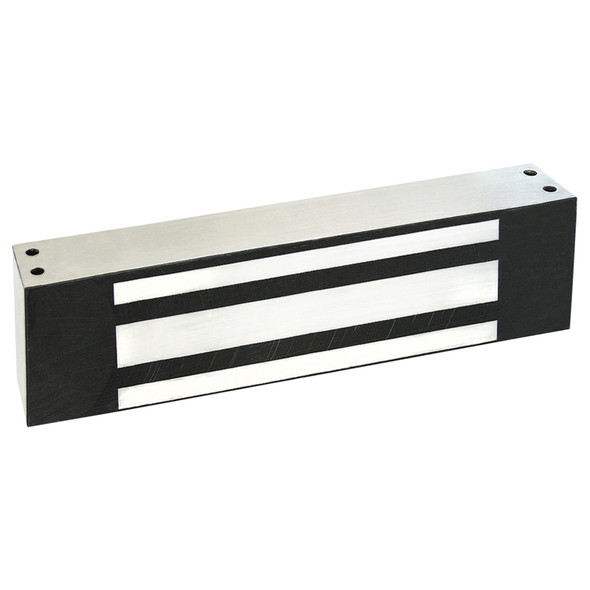

Securitron M82FGB 1800 lbs Holding Force Magnalock
- Maglock M82 Series, 1800 Lbs, 12/24VDC, Gate Conduit, Face Drilled for Inswing Doors.
- Magnalock Bondstat, Face Mount, Conduit fitting.
1800 lbs. holding force Magnalock with automatic dual voltage and magnetic bond sensing function standard. Preferred by prisons and detention facilities, and also functions best on large, high security gates.
Product Features
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with minimal tools
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening type include mounting brackets, housings and dress covers
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- BondSTAT magnetic bond sensor standard
- Integrated door position switch, conduit and face mount models available
- Universal threaded conduit fitting is 1/2" female - 3/4" male
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 1800 lbs. [816 kg]
- Current Draw and Voltage: 350mA at 12VDC; 200mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
M82B Architectural Specifications
M82B Installation Instructions
