Description

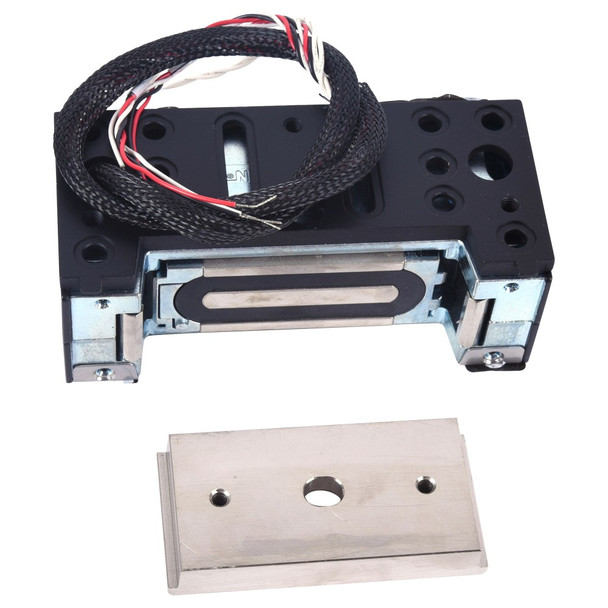

Securitron MM15GDT MEMLOCK Electromechanical Maglock 4000lbs, Conduit Fitting, DPS, Tamper
-
Conduit Fitting.
- Door Status/tamper Switches.
4000 lbs. holding force dual voltage, dual current Magnalock for interior or perimeter doors where ultra-high security and compact size are required.
MM15 is a hybrid design with two spring loaded, hardened steel jaws. In the event of a forced entry attempt, the mandibles rotate inward, clamping down and capturing the edges of the armature.
Product Features
- 4000 lbs. holding force provides an unmatched level of security
- Dual voltage (12/24) and dual current (AC/DC) operation
- Mounting plate provides easy and accurate installation
- Fail Safe, but can be installed with a battery backup power supply
- Optional door position switch and anti-tamper switch
- Optional prep for use with 1/2" conduit
- Optional finishes via dress covers include Black, Polished Brass and Satin Brass
- Brackets and accessories to configure any opening
- Indoor use only
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 4000 lbs. [1814 kg]
- Current Draw and Voltage:
- AC Current: 130 mA max at 12 VAC, 250 mA max at 24 VAC
- DC Current: 100 mA max at 12 VDC, 200 mA max at 24 VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
- UL Listed
Models
| Part # | Description |
| MM15 | Electromechanical Maglock - 4000lbs |
| MM15DT | Electromechanical Maglock - 4000lbs, DPS, Tamper |
| MM15G | Electromechanical Maglock - 4000lbs, Conduit |
| MM15GDT | Electromechanical Maglock - 4000lbs, Conduit, DPS, Tamper |
