Securitron MSS-1C Maximum Security Switches
Securitron

Securitron MSS-1C Maximum Security Switches


MSRP: $272.00
$180.88
You save $91.12
SKU:
MSS-1C
In Stock & Ready To Ship!
Current Stock:Only left:
Ask Questions

Description

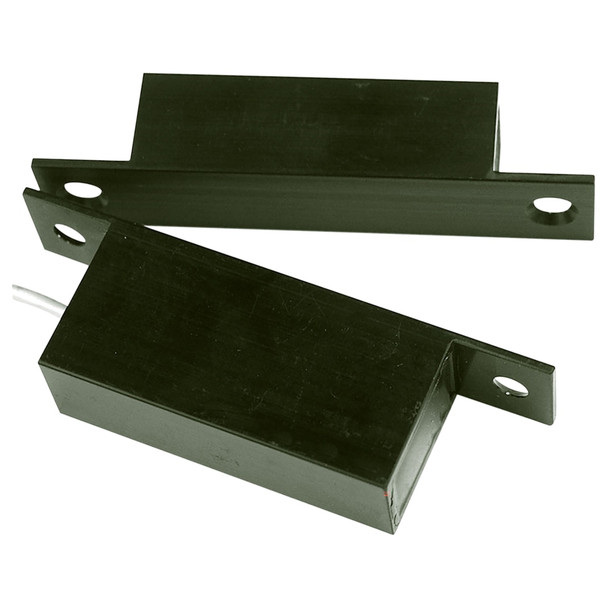

Securitron MMS-1C Maximum Security Switches

  • High Security DPS Concealed.
  • Door Position Switch.
  • Maximum Security.
  • Concealed Mount.

Used to provide nearly undefeatable door monitoring in the highest security areas.

Product Features

  • Used to monitor the open/closed status of doors, windows, gates, machinery safety barriers or other moving assemblies
  • Supplied in three versions for different environments:

Door with hollow frame = MSS-1 provides a jacketed cable

Other types of openings = MSS-1G includes a 3-foot [936mm] stainless steel cable

Standard ANSI 4-7/8" strike cutout = MSS-1C is a concealed unit
  • Anti tamper output (MSS-1 and MSS-1G)
  • False alarm reduction
  • MagnaCare® lifetime replacement, no fault warranty

Specification Data

  • Main Output: SPDT at max of 125mA at 24V; 250mA at 12V
  • Tamper Output: Closed when secure; open to alarm - 1 Amp max current
  • Operating Temperature: -40 to +150F [-40 to +65C]

pdficon.pngMSS-1 Architectural Specifications

pdficon.pngMSS-1 Installation Instructions

pdficon.pngMSS-1 Template
