Description

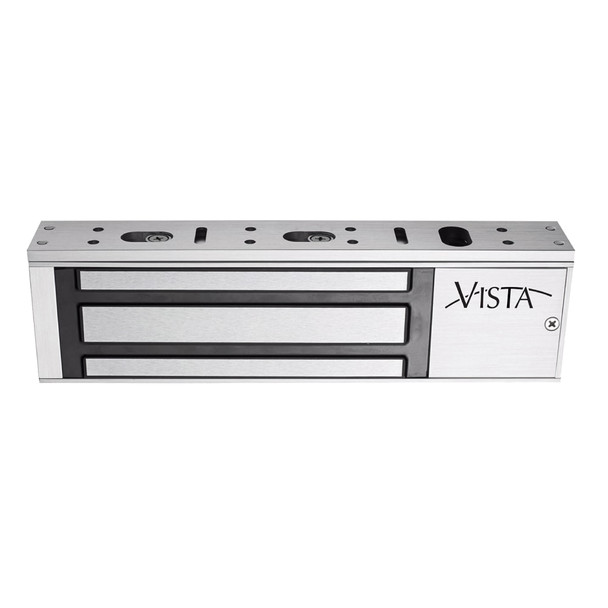

Securitron V2M1200 12/24VDC Vista Magnetic Lock Dual Voltage
1200 lbs. holding force maglock with field selectable dual voltage. Recommended for interior and perimeter security doors. Model VM1290 is a direct retrofit for Locknetics 390+ maglocks and includes a specialized mounting plate that utilizes existing mounting holes. Indoor use only.
Product Features
- Individually tested for holding force
- Easy Mount Adjustable Bracket
- Instant release (no residual magnetism)
- Optional Bond Sensor and Door Position Switch available
- Wire Access Chamber with Plug-In connectors
- Dual voltage 12/24VDC
- Brushed Aluminum Finish
- UL Listed
- VistaCare One-year hassle-free, no fault warranty
Specification Data
Holding Force: 1200 lbs [544 kg]
Voltage: 12 or 24VDC (field selectable)
Current Draw: 520mA at 12VDC, 260mA at 24VDC
Operating Temperature: +32 to +110F [0 to +43C]
10-15/32" [266mm] x 2-27/32" [72mm] x 1-37/64" [40mm]
Models
|
Part # |
Description |
|
VM1200 |
Vista Magnetic Lock - 1200lbs, Dual Voltage |
|
VM1200DB |
VM1200 Maglock, Dual Voltage, Door Position Switch, Bond Sensor |
|
VM1290 |
VM1200 Maglock w/ Retrofit Bracket for Locknetics 390 Lock |
|
VM1290DB |
VM1200DB Maglock w/ Retrofit Bracket for Locknetics 390 Lock |
Securitron VM1200 Specifications
