Description

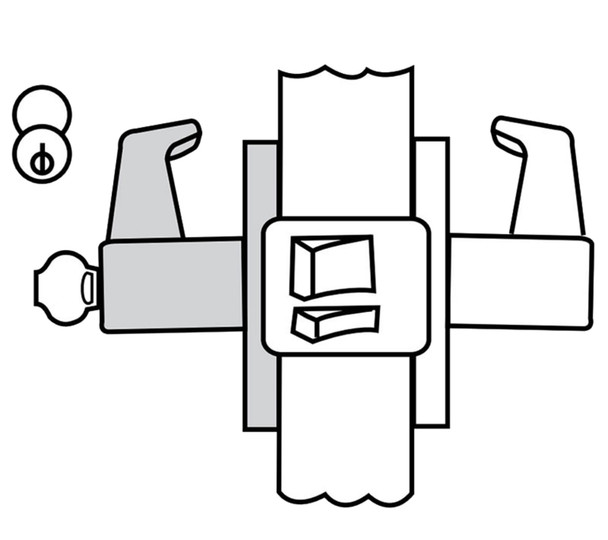

UT5257 ESE 626 LH Corbin Russwin Cylindrical Lock
Applications This lock has provided decades of service in some of the world's most prestigious buildings. Its pre-assembled, unitized construction is ideal for projects where installation costs are to be minimized. Typical high-traffic commercial, institutional and industrial applications include: Schools and universities Office buildings Hospitals Municipal buildings Historic buildings Advantages Factory pre-assembled for quick, economical, one-piece installation: no job site assembly required 3/4" radius latchbolt, designed to wedge more tightly into the strike when tampered with, while meeting all ADA force-to-latch requirements.
- Handing Specify hand. All functions are handed.
- Door Thickness 1-3/4" (44mm) only.
- Backset 2-3/4" (70mm) only.
- Lock Chassis One-piece investment cast frame. Machined internal parts of steel, bronze and stainless steel. Zinc dichromated for corrosion resistance.
- Front Beveled 1/8" (3mm) in 2" (51mm).
- Latchbolt Brass, chrome plated, 3/4" (19mm) throw pivoted, swinging type.
- Auxiliary Latch Deadlocks latchbolt, preventing manipulation when door is closed.
- Strike Wrought brass or bronze, ANSI strike with nylon adjusting screw, standard. 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes and lip lengths available;
- Cylinder Brass, 6-pin, L4 keyway, 0-bitted standard.
- Keys Two nickel silver standard.
- Federal Meets FF-H-106C.
- UL-cUL All locks listed for A label and lesser class doors, single or pair, maximum door size 3'8" (111.7cm) x 7'2"(218.4cm) All locksets also listed for B label
- Warranty One-year limited.
